FreeDo Series Laser, Mechanical, Measurement, Multi Functional Processing

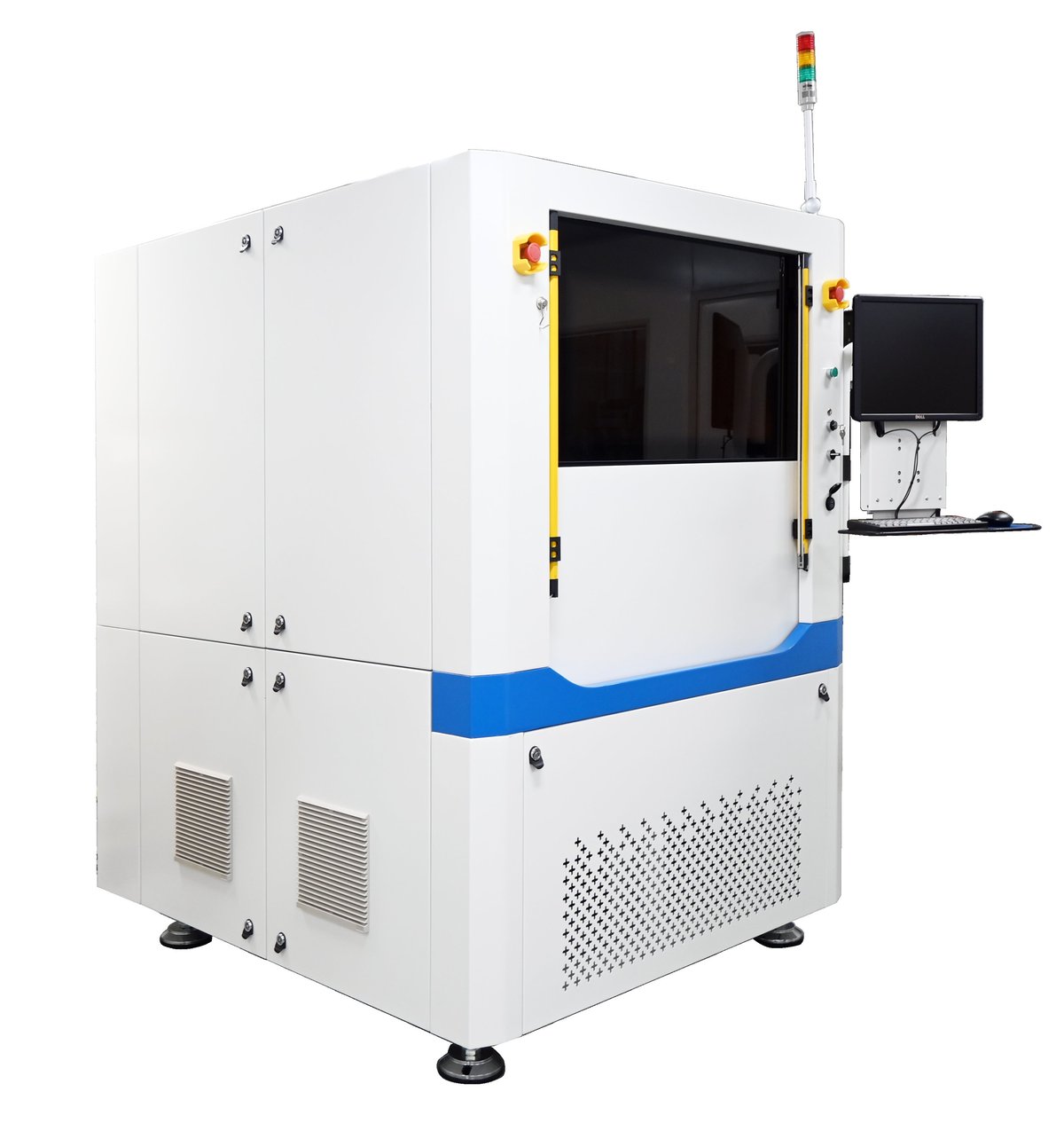

The DCT FreeDo started a new age for laboratory PCB prototyping. The combination of Laser and mechanical advantages makes in house PCB prototyping much more easy. Drilling, routing, and PCB structuring can be finished within minutes with only one machine.
The FreeDo is equipped with high performance German spindle. All axis servo motor and full automatic 12 tool changer guaranteed very fast drilling and routing speed. System build-in vision system can share the very exact position for laser system. Because the drilling and structuring process are shared with the same vision and positioning system, the best accuracy can be guaranteed.
Product parameters
Technical data | FreeDo 300 |
spot size | 15μm-20μm |
Repeated accuracy | 1μm |
Mobile comprehensive accuracy | 5μm |
Mobile control resolution | 1μm |
Min. line width | 15μm |
Min. space | 30μm |
Min. hole diameter | 30μm |
Laser copper stripping speed | 12cm²/min |
Max. layout area | 350*250*20mm |
Spindle speed | 0-60000rpm |
Tool changer | 12 tool bases automatic changer |
Drilling speed | 90-120 h/min |
Routing speed | 5mm/s (depend on material and thickness) |
Dimension (W x H x D) | 850mm×900mm×1450mm |
Power supply | 220VAC/50Hz,/1.6kW |
Weight | 270kg |
Weight | 120kg |
Configuration & Option | FreeDo 300 |
Vision and automatic positioning system | Standard |
Vacuum table | Standard |
Metal hausing | Standard |
Quadratic elementmeasure (basic function) | Standard |
Data processing software CircuitCAM | Standard |
Machine operation software DreamCreaTor | Standard |
PCB design software Edwin | Standard |
External quiet vacuum cleaner | Option |
Air compressor | Option |
Laser Goggles | Option |
PC | Standard |
