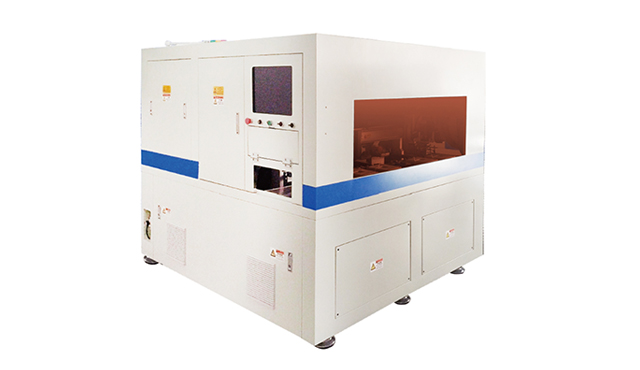

DirectLaser DC7 Double Head Four Platform LTCC Laser Precision Drilling Equipment

DirectLaser D Series LTCC/HTCC Laser Precision Drilling Equipment. It is a machine tailored by DCT for LTCC/HTCC laser precision drilling of micropores DCT has been developing, producing, and applying ceramic laser drilling equipment for the past decade Through experience, multiple targeted solutions have been proposed and have been applied in batches. For raw porcelain The characteristic of high drilling dust, DirectLaser D series LTCC/HTCC excitation The optical precision drilling equipment adopts a sealed optical path design, which enhances the service life of the laser, Extend the system maintenance cycle; In response to the continuous improvement of processing efficiency, the German Chinese rate First, apply high-power ultraviolet lasers in bulk to the production of ceramic drilling, and Its customized online power detection and control module; To ensure stacking accuracy A five fold precision calibration system has been developed in China, due to the HTCC/LTCC material sheet.The material is relatively soft and prone to deformation, resulting in a breakthrough in efficiency during the equipment development process Accurate CCD target recognition algorithm, capable of global automatic/manual, local Automatic/manual expansion and contraction calculation and compensation greatly improve the accuracy of reverse punching And efficiency.




Product parameters


Technical data

DirectLaser DC7

platform structure

Dual excitation head four platforms

laser power

15W/20W/40W optional

Wave length

355nm

Compatible sheet specifications

150mm×150mm (5/6/8)

Working area

160×160mm Four Platforms

X/Y/Z step Resolution

1μm

Repeat postioning accuacy

1200mm/s

Device Platform

Granite platform linear motor

Automatic feeding

Option

Camera positioning

Standard

Vacuum system

Standard

External   quiet vacuum cleaner

Standard

Dimension   (W x H x D)

1,850mm×1,950mm×2,250mm

Weight

2,500kg

Power supply

380VAC/50Hz,3.5kW
